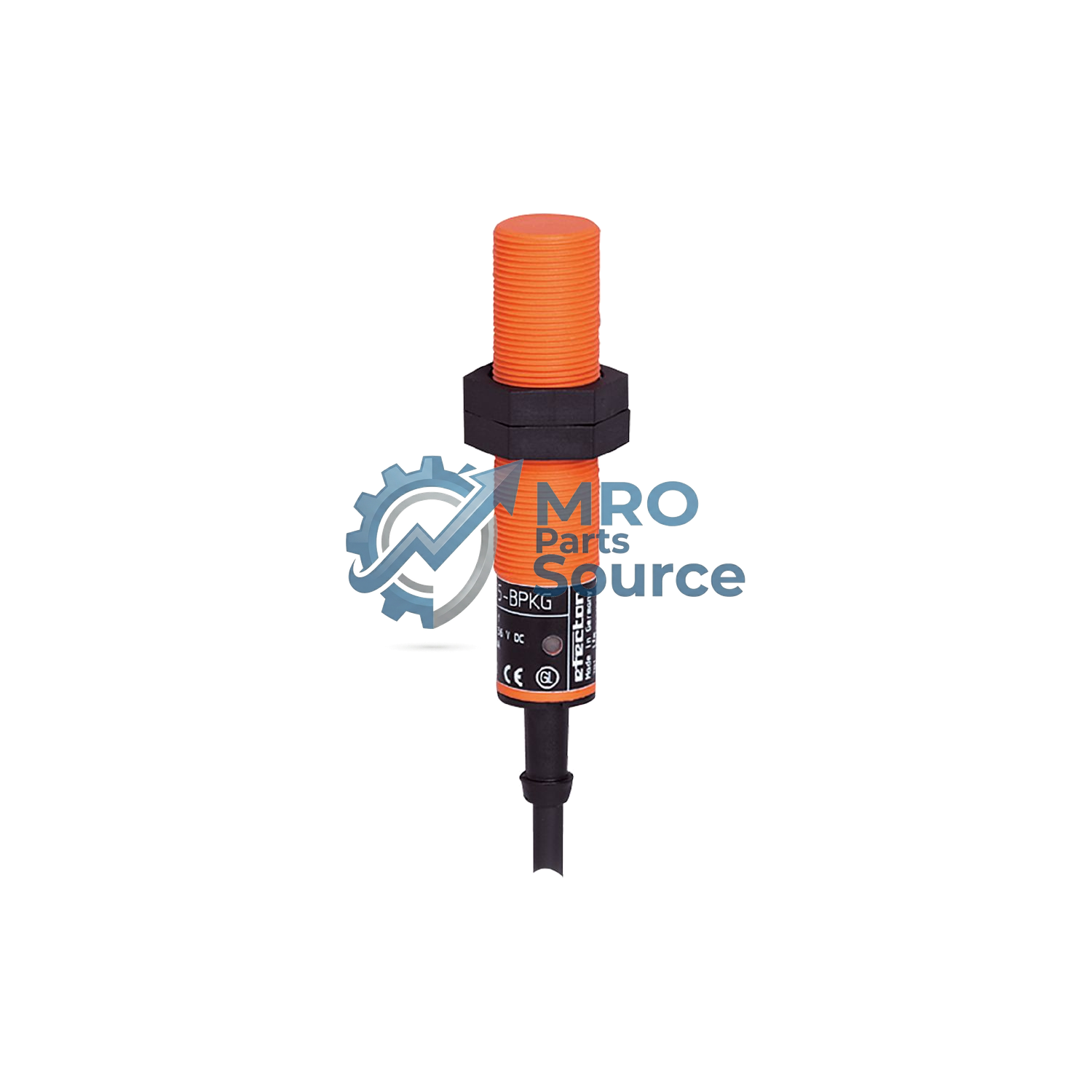

IFM IG5401 Inductive Proximity Sensors

Inductive sensor

IFM IG5401 Inductive Proximity Sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Product Highlights

Product designation	Inductive sensor
Operating voltage DC	10...36 V
Voltage type	DC
Electrical design	PNP
Output function	normally open
Housing length	80 mm
Mounting	non-flush mountable
Connection	2 m PVC-Cable
Materials	housing: PBT
Display	switching status: 1 x LED yellow
Ambient temperature	-25...80 °C
Brand	ifm electronic gmbh or equivalent
Type	IG5401

Product characteristics
Electrical design	PNP
Output function	normally open
Sensing range[mm]	8
Housing	threaded type
Dimensions[mm]	M18 x 1 / L = 80
Electrical data
Operating voltage[V]	10...36 DC
Current consumption[mA]	15; (24 V)
Protection class	II
Reverse polarity protection	yes
Outputs
Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC[V]	2.5
Permanent current rating of switching output DC[mA]	250
Switching frequency DC[Hz]	300
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes
Detection zone
Sensing range[mm]	8
Real sensing range Sr[mm]	8 ± 10 %
Operating distance[mm]	0...6.5
Accuracy / deviations
Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis[% of Sr]	1...15
Switch point drift[% of Sr]	-10...10
Operating conditions
Ambient temperature[°C]	-25...80
Protection	IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF[years]	1853
Mechanical data
Weight[g]	124.8
Housing	threaded type
Mounting	non-flush mountable
Dimensions[mm]	M18 x 1 / L = 80
Thread designation	M18 x 1
Materials	housing: PBT
Displays / operating elements
Display
switching status	1 x LED, yellow
Accessories
Items supplied	lock nuts: 2
Remarks
Pack quantity	1 pcs.
Electrical connection
Cable	2 m, PVC; 3 x 0.5 mm²
