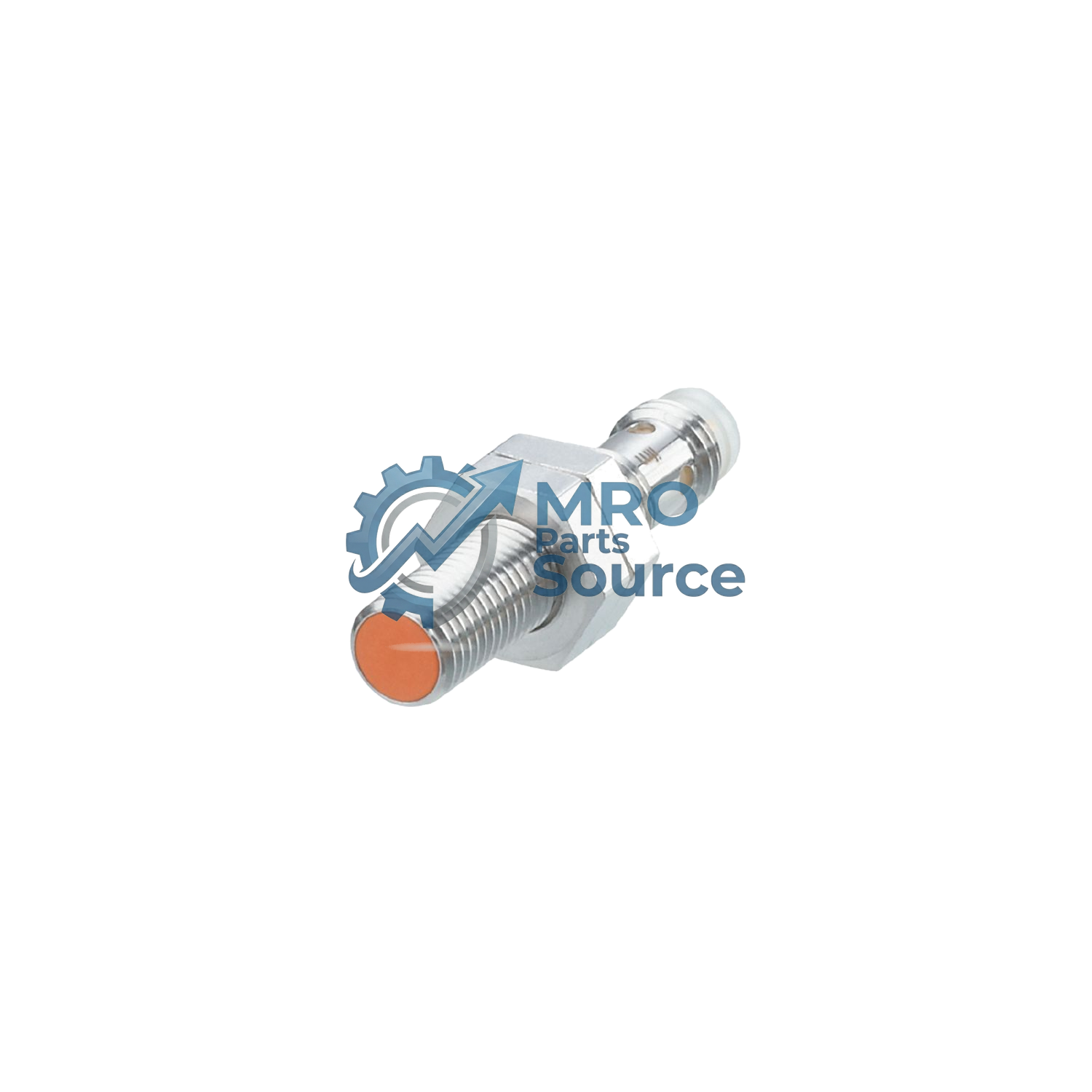

IFM IE5338 Inductive Proximity Sensors
Inductive sensor
IFM IE5338 Inductive Proximity Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Product Highlights
- Particularly short housing
- For use where space is restricted
- Clearly visible indication of the switching status
- Long sensing range for high uptime
- Reduced stock-keeping due to operation as three-wire or two-wire unit
Overview
| Product designation | Inductive sensor |
| Operating voltage DC | 10...30 V |
| Voltage type | DC |
| Electrical design | PNP/NPN |
| Output function | normally open |
| Housing length | 40 mm |
| Mounting | flush mountable |
| Connection | M8 Connector |
| Materials | housing: brass white bronze coated; sensing face: LCP orange; LED window: PPSU; lock nuts: brass white bronze coated |
| Display | switching status: 4 LED yellow |
| Ambient temperature | 0...60 °C |
| Brand | ifm electronic gmbh or equivalent |
| Type | IE5338 |
Specifications
| Product characteristics | |
| Electrical design | PNP/NPN |
| Output function | normally open |
| Sensing range[mm] | 3 |
| Housing | threaded type |
| Dimensions[mm] | M8 x 1 / L = 40 |
| Electrical data | |
| Operating voltage[V] | 10...30 DC |
| Protection class | III |
| Reverse polarity protection | yes |
| Outputs | |
| Electrical design | PNP/NPN |
| Output function | normally open |
| Max. voltage drop switching output DC[V] | 3.5 |
| Minimum load current[mA] | 2; (only in 2-wire operation) |
| Max. leakage current[mA] | 0.5; (only in 2-wire operation) |
| Permanent current rating of switching output DC[mA] | 100 |
| Switching frequency DC[Hz] | 800 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Detection zone | |
| Sensing range[mm] | 3 |
| Real sensing range Sr[mm] | 3 ± 10 % |
| Operating distance[mm] | 0...2.4 |
| Accuracy / deviations | |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
| Hysteresis[% of Sr] | 1...20 |
| Switch point drift[mm] | -10...10 |
| Operating conditions | |
| Ambient temperature[°C] | 0...60 |
| Protection | IP 65; IP 67; (with ifm socket duly screwed on) |
| Tests / approvals | |
| EMC | |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| EN 55011 | class B |
| MTTF[years] | 403 |
| Embedded software included | no |
| UL approval | |
| Ta | 0...60 °C |
| Enclosure type | Type 1 |
| voltage supply | Limited Voltage/Current |
| UL approval no. | A017 |
| File number UL | E174191 |
| Mechanical data | |
| Weight[g] | 16.5 |
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] | M8 x 1 / L = 40 |
| Thread designation | M8 x 1 |
| Materials | housing: brass white bronze coated; sensing face: LCP orange; LED window: PPSU; lock nuts: brass white bronze coated |
| Tightening torque[Nm] | A = 5 mm: 1,5 Nm; B = 2 Nm |
| Displays / operating elements | |
| Display | |
| switching status | 4 LED, yellow |
| Accessories | |
| Items supplied | lock nuts: 2 |
| Remarks | |
| Pack quantity | 1 pcs. |
| Electrical connection - plug | |
| Connector | 1 x M8; coding: A; Contacts: 3 |
Downloads
- IE5338-03 EN-US (177 KB)
