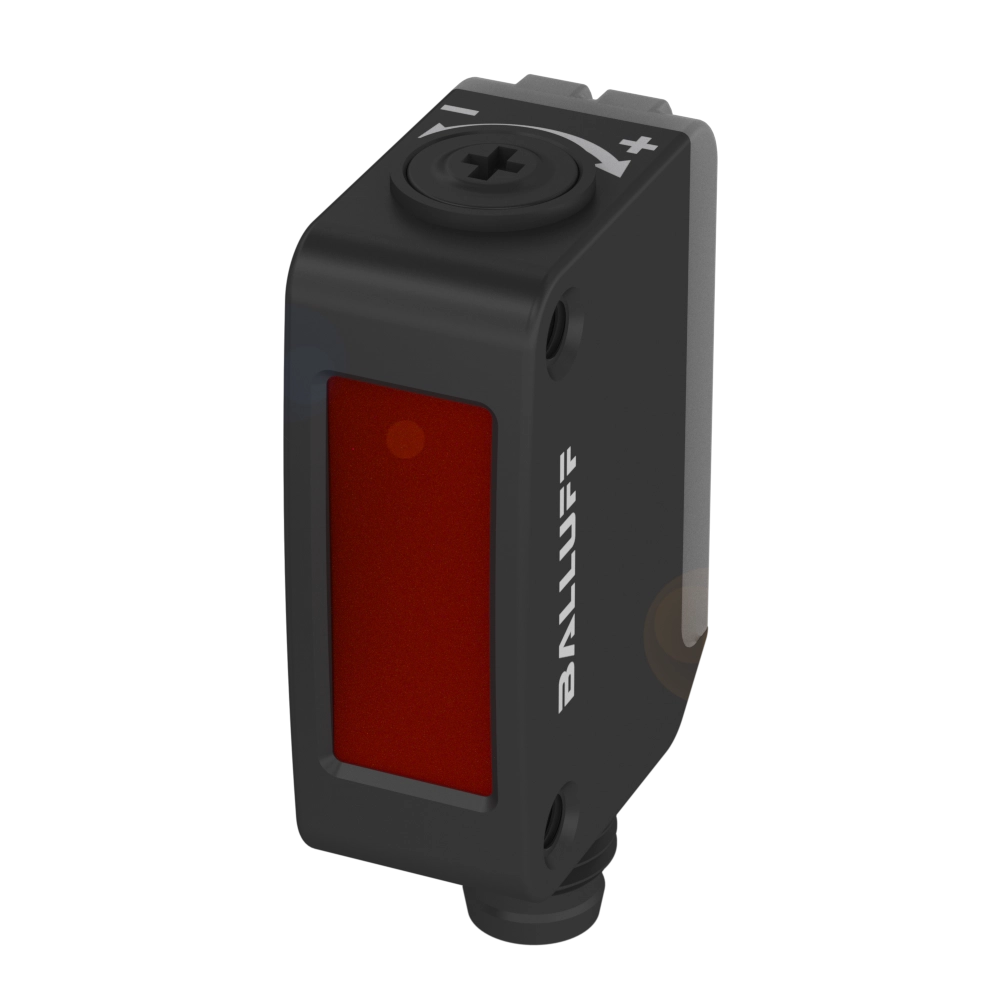

Balluff BOS02JM Diffuse sensors
Cubic diffuse sensor Entry Line with excellent price-performance ratio
Balluff BOS02JM Diffuse sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Series | R072K |
| Dimension | 12 x 42.5 x 22.7 mm |
| Interface | PNP: NO/NC |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, Triangulation |
| Special optical feature | Background suppression |
| Beam characteristic | Divergent |
| Light type | LED Red light |
| Light spot size | Ø 9 mm at 60 mm |
| Range | 0...350 mm |
| Connection | Connector, M8x1-Male, 4-pin |
| Housing material | PA 6PA 12 |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | cULus CE UKCA WEEE |
Downloads
- BOS R072K-PU-RH10-S75 (102 KB)
