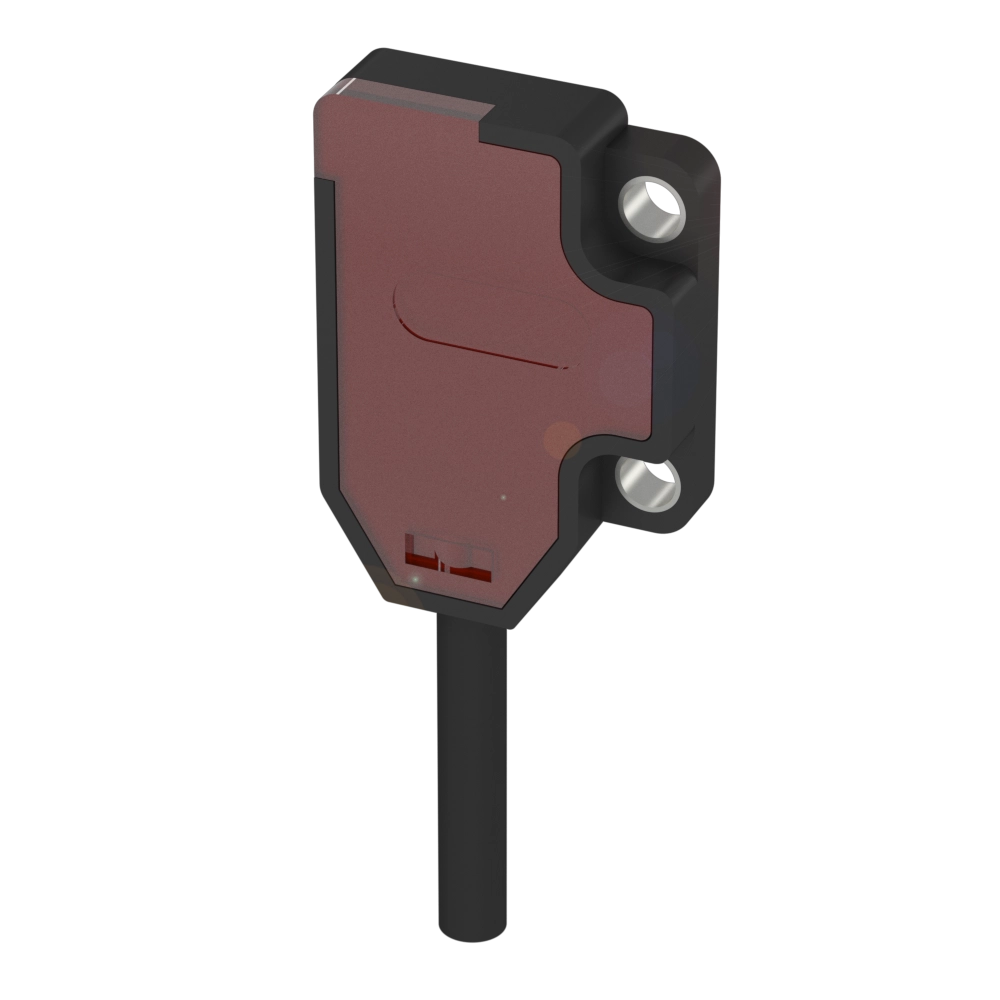

Balluff BOS02H7 Photoelectric Sensors
Miniature photoelectric sensor for use in confined spaces
Balluff BOS02H7 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Series | R030K |
| Dimension | 14 x 4.2 x 20.5 mm |
| Interface | PNP Normally open (NO) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, Triangulation |
| Special optical feature | Background suppression |
| Beam characteristic | Focus, typical at 15 mm |
| Light type | LED Red light |
| Light spot size | 4 x 4 mm |
| Range | 3...30 mm |
| Connection | Cable, 2.00 m, PVC |
| Housing material | PBT & ABS |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE UKCA cULus WEEE |
Downloads
- BOS R030K-PS-RF10-02 (97 KB)
