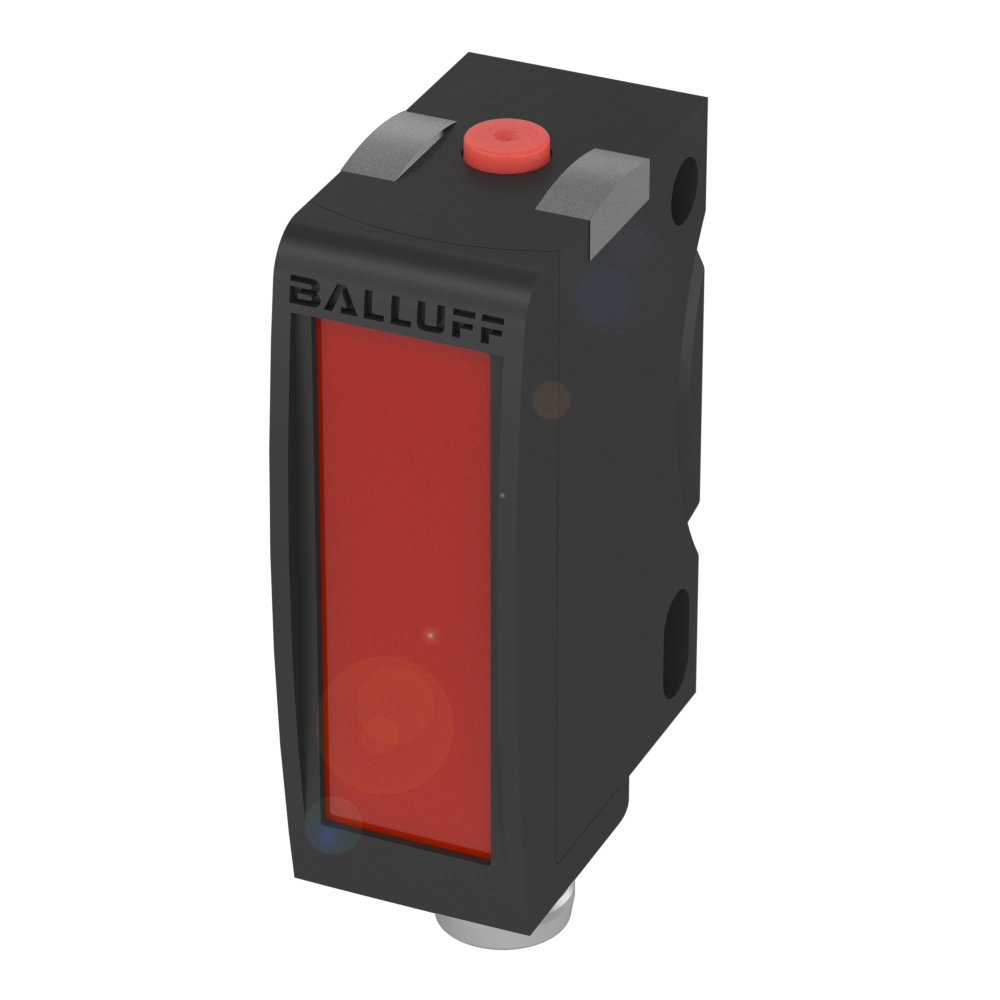

Balluff BOS02F0 Retroreflective sensors
Cubic retro-reflective photoelectric sensors with different types of light up to 13 m range
Balluff BOS02F0 Retroreflective sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Series | 6K |
| Dimension | 12 x 34 x 21.6 mm |
| Interface | IO-Link-Device: 1.1.3PNP/NPN/IO-Link: NO/NC |
| Input function | Key disable on/offSame function as button |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Retroreflective sensor, Autocollimation |
| Light type | Laser Red light |
| Light spot size | 4 x 2 mm at 2 m |
| Range | 0...4 m |
| Connection | Connector, M8x1-Male, 4-pin |
| Housing material | ABS |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE UKCA cULus WEEE |
Downloads
- BOS 6K-UI-LK10-S75 (106 KB)
