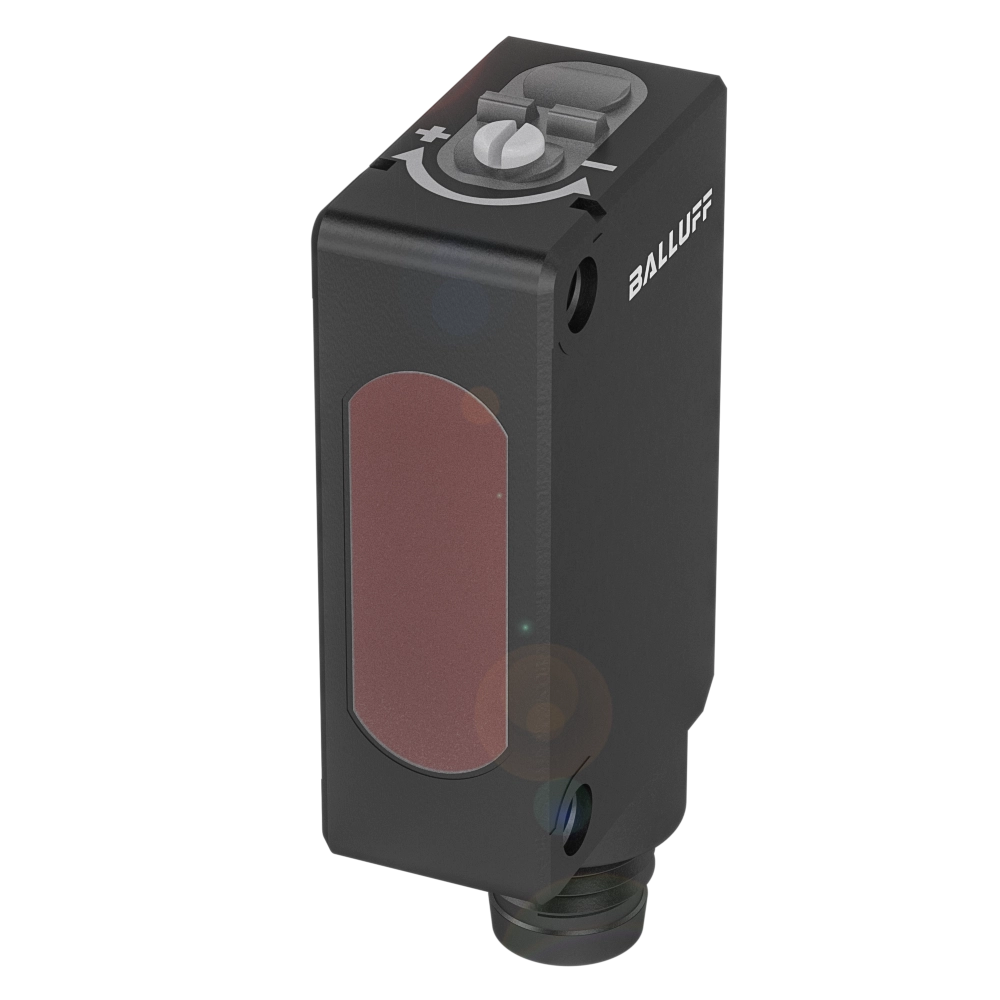

Balluff BOS02A3 Retroreflective sensors
Cubical retro-reflective sensors with different types of light up to 20 m range
Balluff BOS02A3 Retroreflective sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Series | R090K |
| Dimension | 10.7 x 43.5 x 19.5 mm |
| Interface | PNP NO/NC |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Retroreflective sensor |
| Beam characteristic | Divergent |
| Light type | LED Red light |
| Light spot size | Ø 105 mm at 2 m |
| Range | 0...5 m |
| Connection | Connector, M8x1, 4-pin |
| Housing material | PCPBT |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | cULus CE UKCA WEEE |
Downloads
- BOS R090K-PU-RR10-S75 (100 KB)
