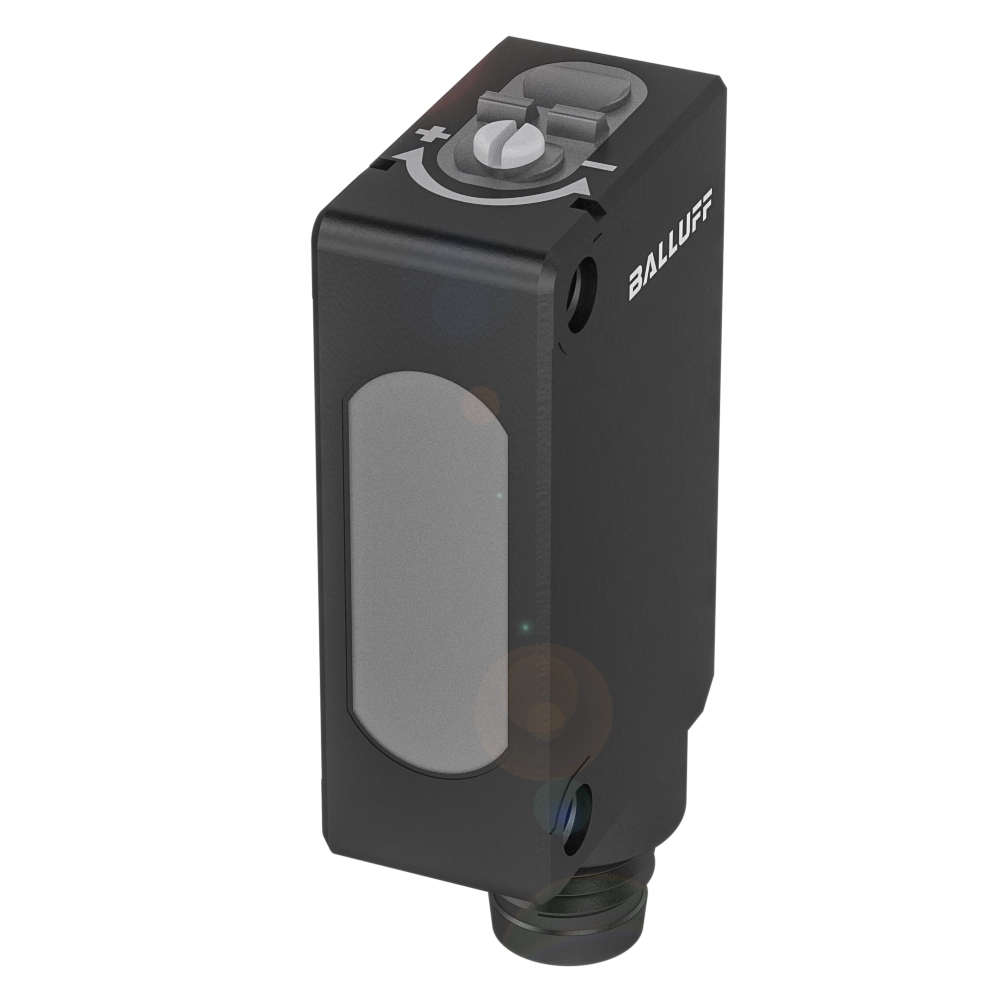

Balluff BOS029M Diffuse sensors
Cubical diffuse sensors with different types of light up to 1 m range
Balluff BOS029M Diffuse sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Series | R090K |
| Dimension | 10.7 x 43.5 x 19.5 mm |
| Interface | PNP NO/NC |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, Triangulation |
| Special optical feature | Background suppression |
| Beam characteristic | Focus, typical at 90 mm |
| Light type | LED Red light |
| Light spot size | Ø 4.5 mm at 60 mm |
| Range | 20...350 mm |
| Connection | Connector, M8x1, 4-pin |
| Housing material | PCPBT |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | cULus CE UKCA WEEE |
