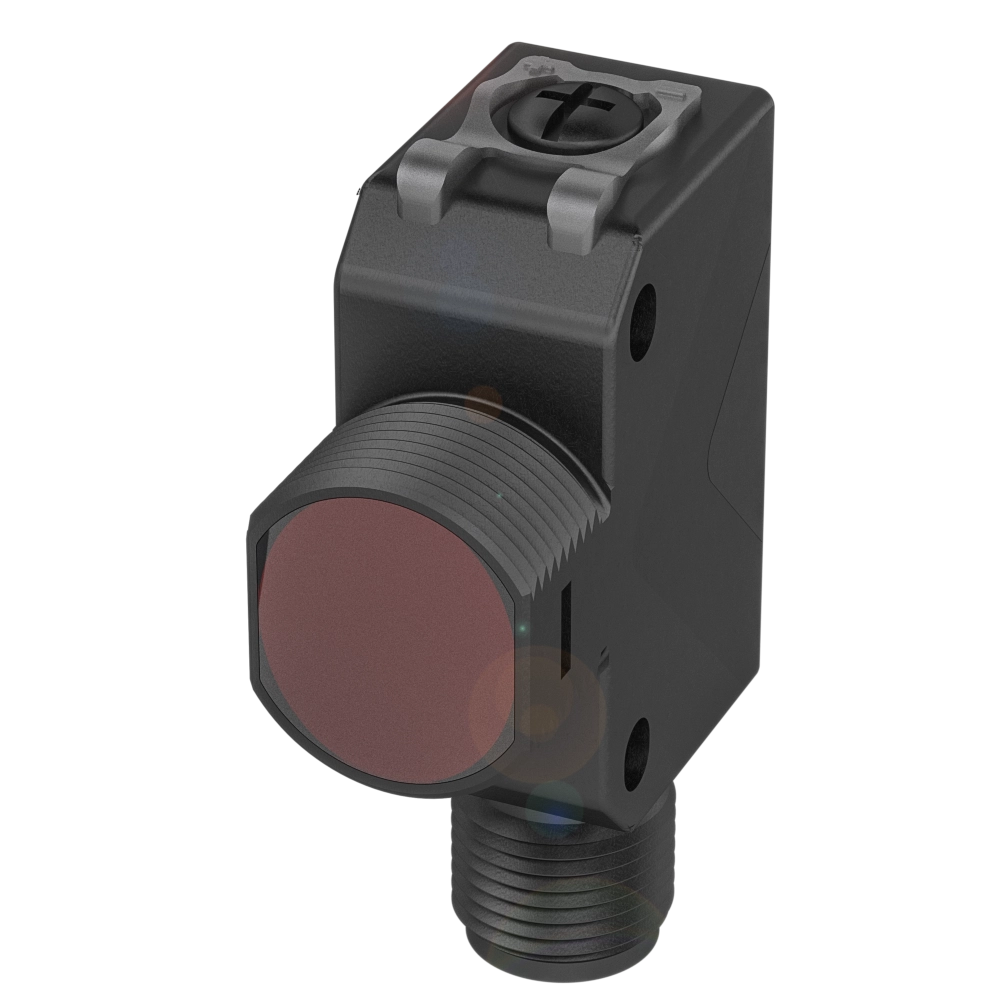

Balluff BOS0298 Diffuse sensors
Cubical diffuse sensors with different light types for hole mounting
Balluff BOS0298 Diffuse sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Series | R81K |
| Dimension | 15 x 48.9 x 31 mm |
| Interface | PNP Normally open (NO)Normally closed (NC) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor |
| Light type | LED Red light |
| Light spot size | 18 x 18 mm at 300 mm |
| Range | 5...300 mm |
| Connection | Connector, M12x1-Male, 4-pin |
| Housing material | ABSPMMA |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE cULus UKCA |
| WEEE | |
| Scope of delivery | Mounting bracket |
