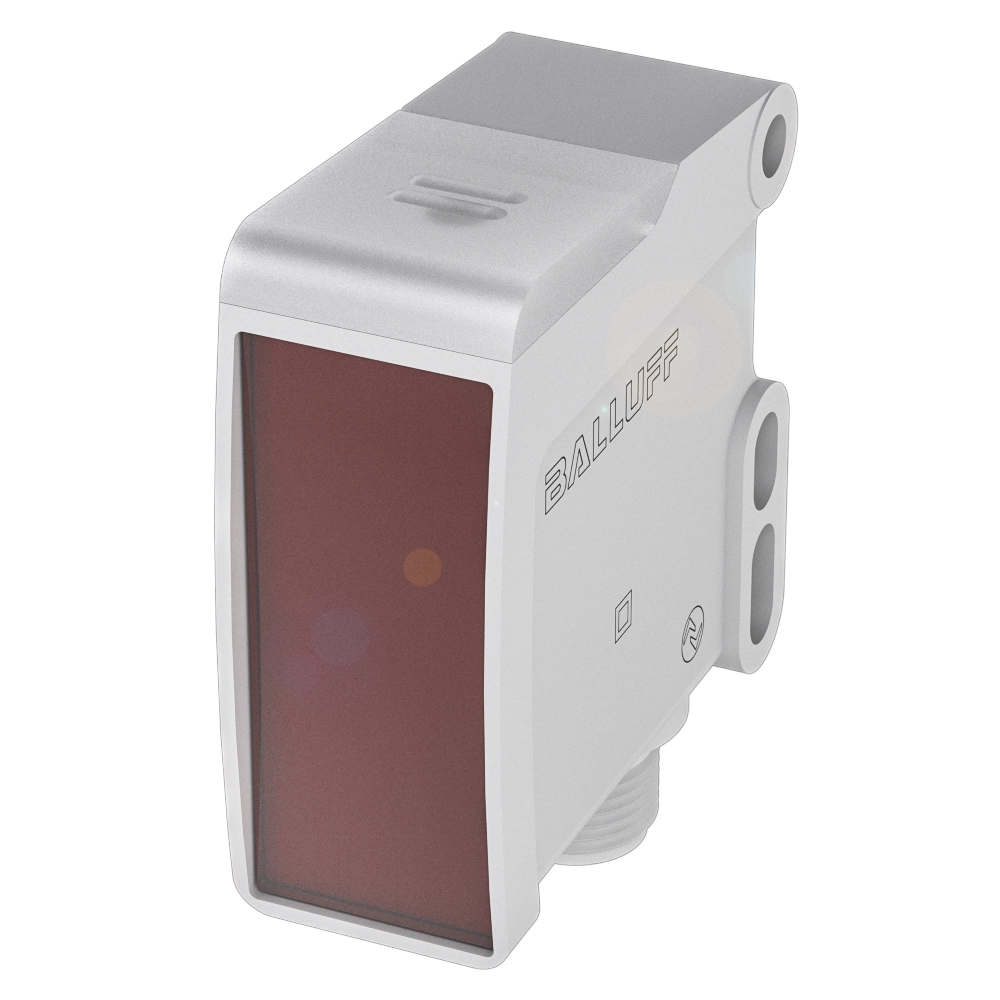

Balluff BOS0286 Retroreflective sensors
Cubical retro-reflective sensors with different light types for washdown
Balluff BOS0286 Retroreflective sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Special characteristics | Washdown PlusWashdown |
| Series | R254K |
| Dimension | 20.4 x 60.3 x 49.5 mm |
| Interface | IO-Link: 1.1Analog, current: 4…20 mAPin 4: Push-pull: NO/NCPin 2: PNP/NPN/push-pull: NO/NC |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Retroreflective sensor |
| Beam characteristic | Divergent |
| Light type | LED Red light |
| Light spot size | 200 x 200 mm at 8 m |
| Range | 8 m |
| Connection | Connector, M12x1-Male, 4-pin |
| Housing material | PA 12PA PACM 12 |
| Material sensing surface | PA PACM 12 |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE UKCA cULus WEEE E c o l a |
| b | |
| Secondary features | IdentificationDevice DiscoverySwitching ProfilesSignal Quality MonitoringExternal Signal BlankingSignal DelaySignal Speed MonitorSwitching CounterBasic StatisticsLogic BlocksOperating Hours CounterBoot Cycle CounterVoltage and Current MonitoringExtreme Environment StatusStorage Usage MonitoringVariant ConfigurationPin Assignment |
| Secondary features for condition monitoring | Vibration monitoringInclination monitoring and installation aidInternal temperature monitoringInternal humidity detection |
| Scope of delivery | Mounting instruction |
Downloads
- BOS R254K-UUI-PR10-S4 (119 KB)
