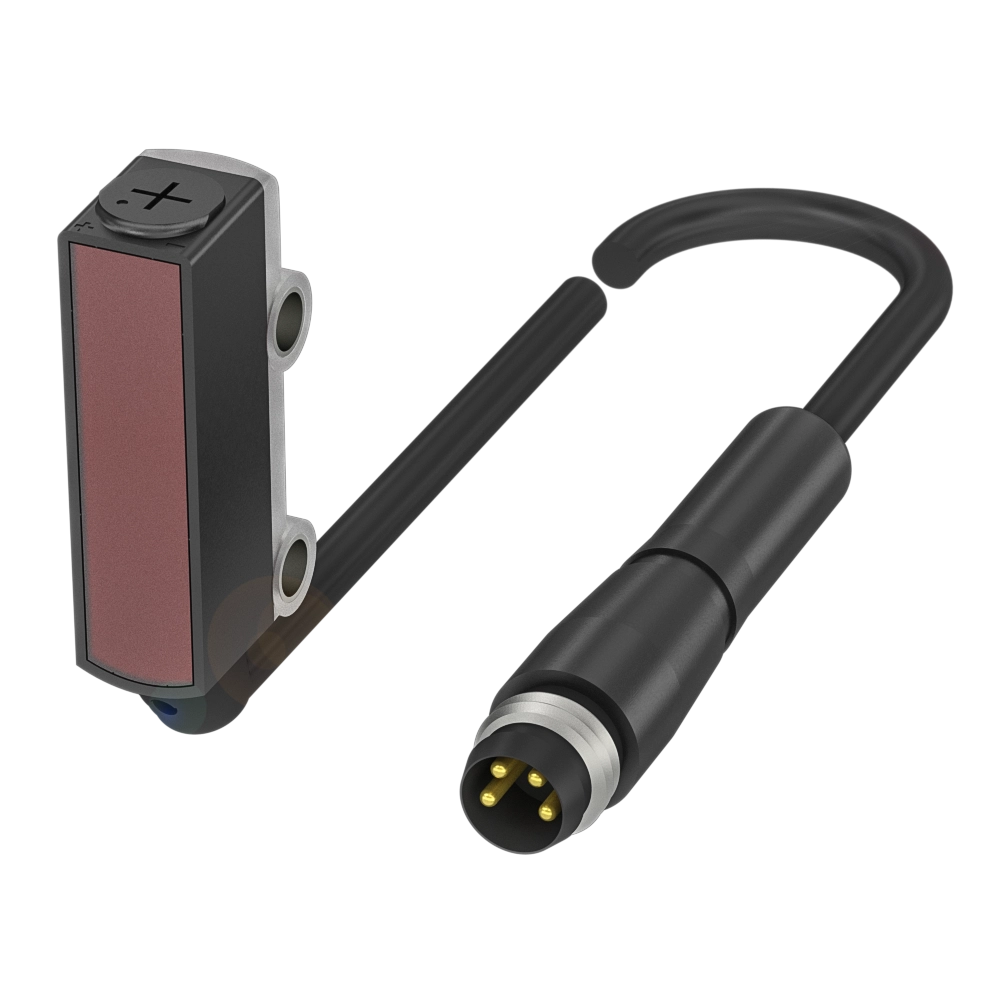

Balluff BOS0234 Diffuse sensors
Cubical diffuse sensors with different types of light up to 150 mm range
Balluff BOS0234 Diffuse sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Series | R020K |
| Dimension | 7.7 x 32.5 x 13.5 mm |
| Interface | PNP Normally open (NO) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, Triangulation |
| Special optical feature | Background suppression |
| Beam characteristic | Focus, typical at 15 mm |
| Light type | LED Red light |
| Light spot size | Ø 4.4 mm at 80 mm |
| Range | 1...150 mm |
| Connection | Cable with connector, M8x1-Male, 4-pin, 0.20 m, PVC |
| Housing material | ABS |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE cULus WEEE UKCA |
