Balluff

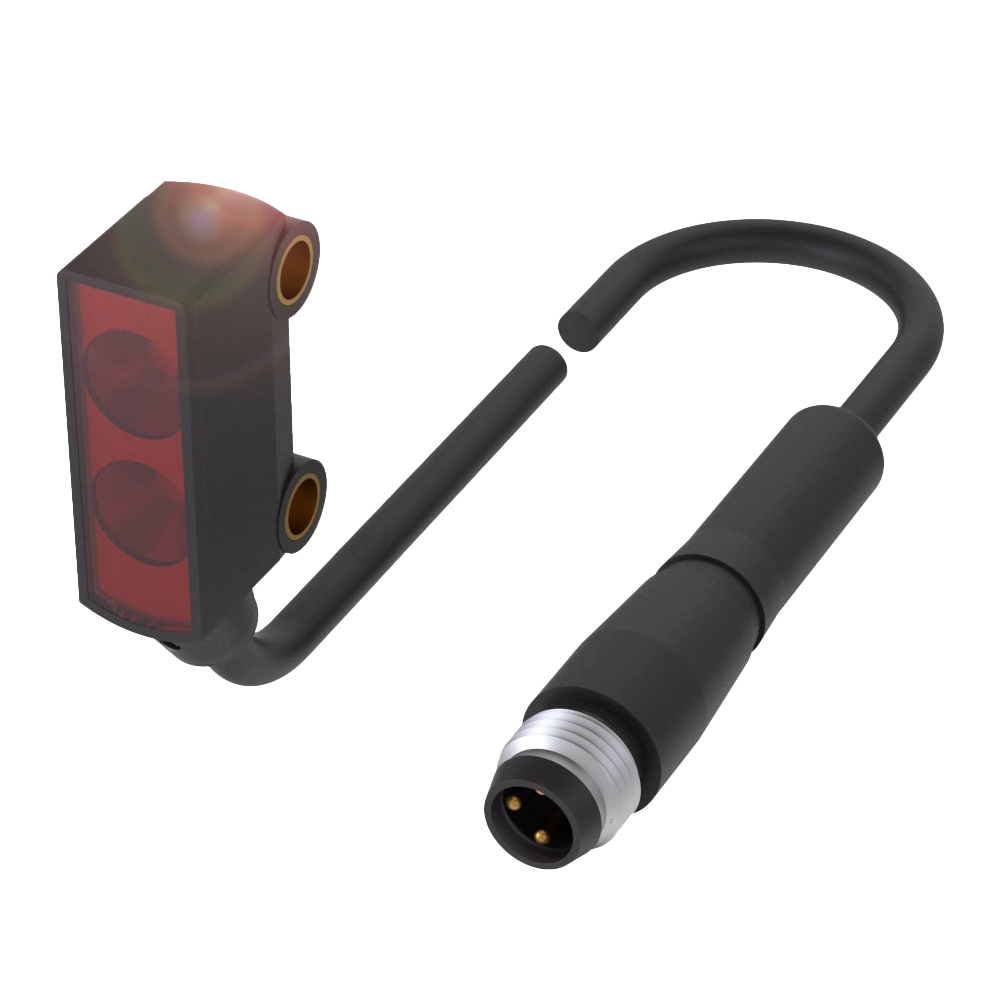

Balluff BOS020T Retroreflective sensors
Cubical retro-reflective sensors with different types of light up to 3 m range
Balluff BOS020T Retroreflective sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Series | R020K |
| Dimension | 7.7 x 26.8 x 13.5 mm |
| Interface | PNP Normally open (NO) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Retroreflective sensor |
| Beam characteristic | Divergent |
| Light type | LED Red light |
| Light spot size | Ø 10 mm at 100 mm |
| Range | 0...3 m |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.20 m, PVC |
| Housing material | ABS |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE cULus WEEE UKCA |
Downloads
- BOS R020K-PS-PR11-00,2-S49 (123 KB)
