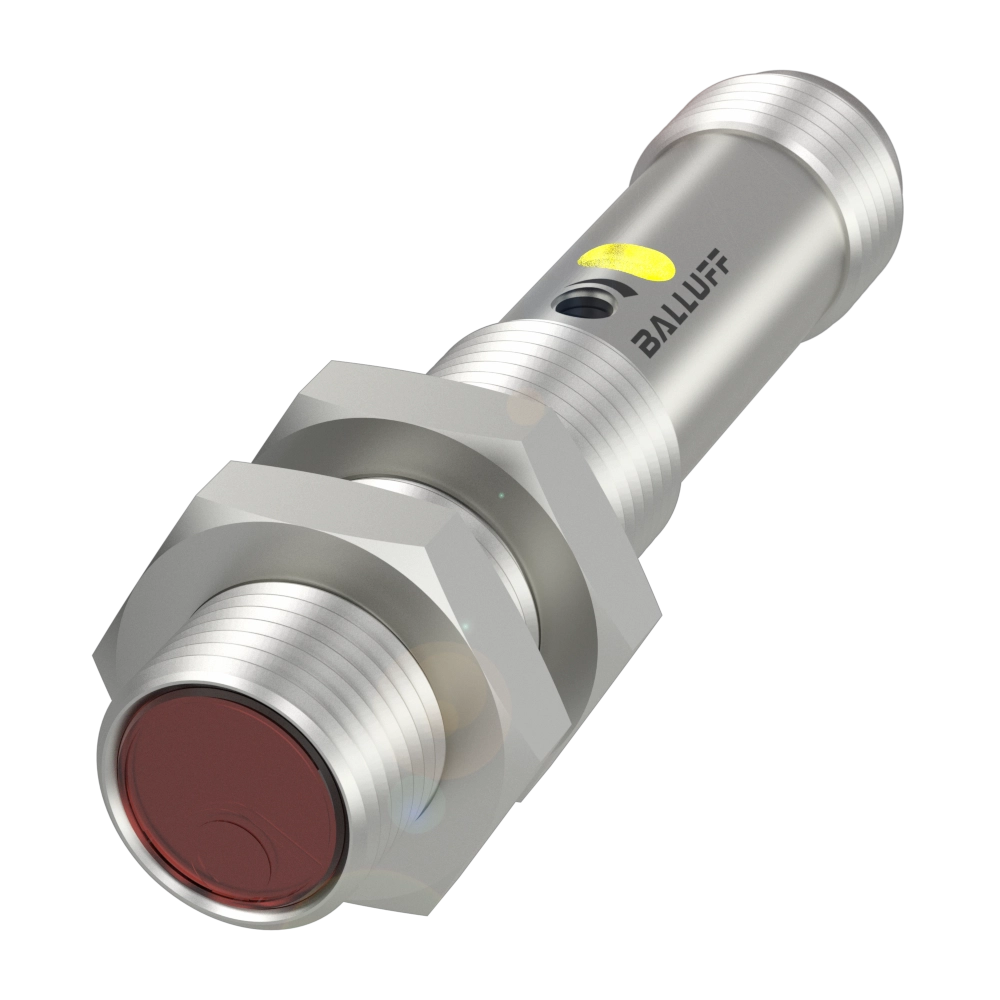

Balluff BOS01Y2 Diffuse sensors
Cylindrical diffuse sensors with M12 thread and different light types
Balluff BOS01Y2 Diffuse sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Series | 12M |
| Dimension | Ø 12 x 60 mm |
| Interface | PNP Normally open (NO) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, (energetic) |
| Beam characteristic | Divergent |
| Light type | LED Infrared |
| Light spot size | 45 x 45 mm at 400 mm |
| Range | 1...400 mm |
| Connection | Connector, M12x1-Male, 4-pin |
| Housing material | Brass, nickel-plated |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE UKCA cULus WEEE |
Downloads
- BOS 12M-PS-ID10-S4 (104 KB)
