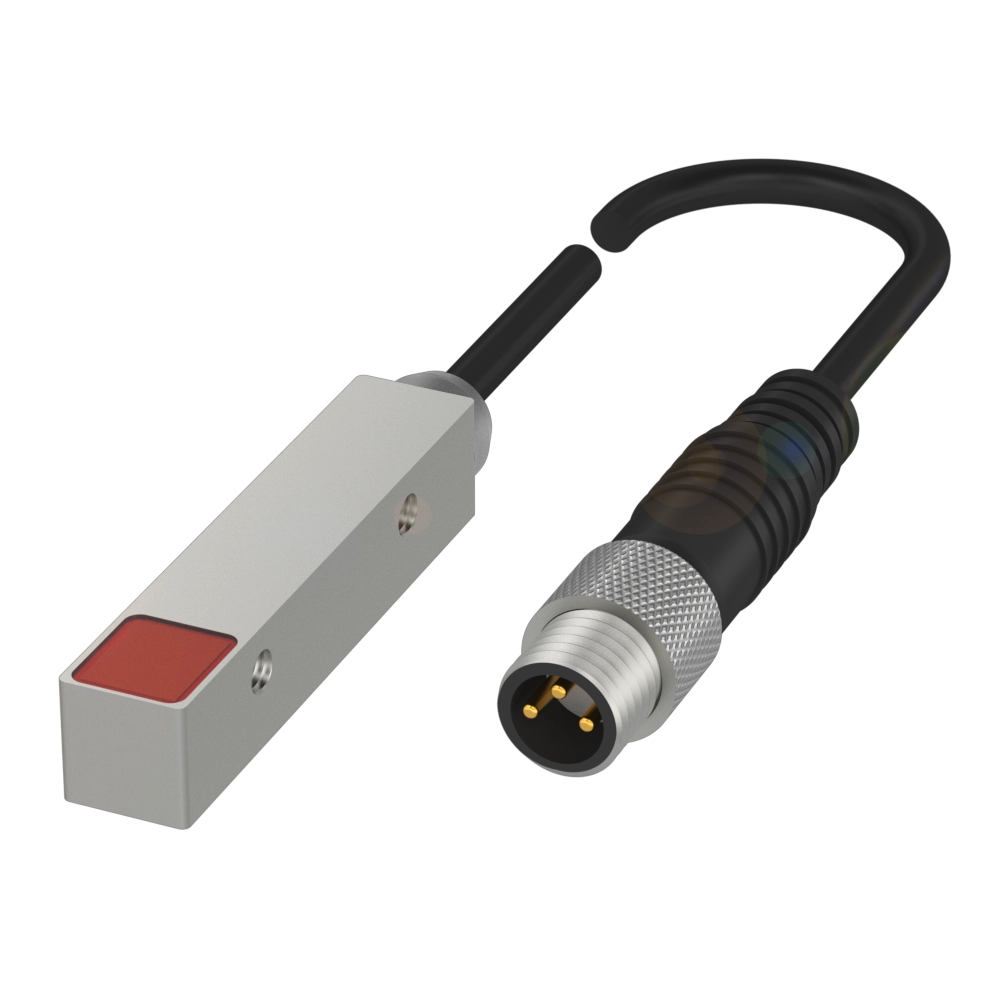

Balluff BOS01RZ Diffuse sensors
Square diffuse sensors with different light types
Balluff BOS01RZ Diffuse sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Series | Q08M |
| Dimension | 8 x 44 x 8 mm |
| Interface | PNP Normally open (NO) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, (energetic) |
| Beam characteristic | Divergent |
| Light type | LED Red light |
| Light spot size | Ø 3.0 mm Light exit |
| Range | 1...60 mm |
| Connection | Cable with connector, 0.20 m, PUR |
| Housing material | Zinc, Die casting, nickel-plated |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | cULus CE UKCA WEEE |
Downloads
- BOS Q08M-PS-KD20-00,2-S49 (105 KB)
