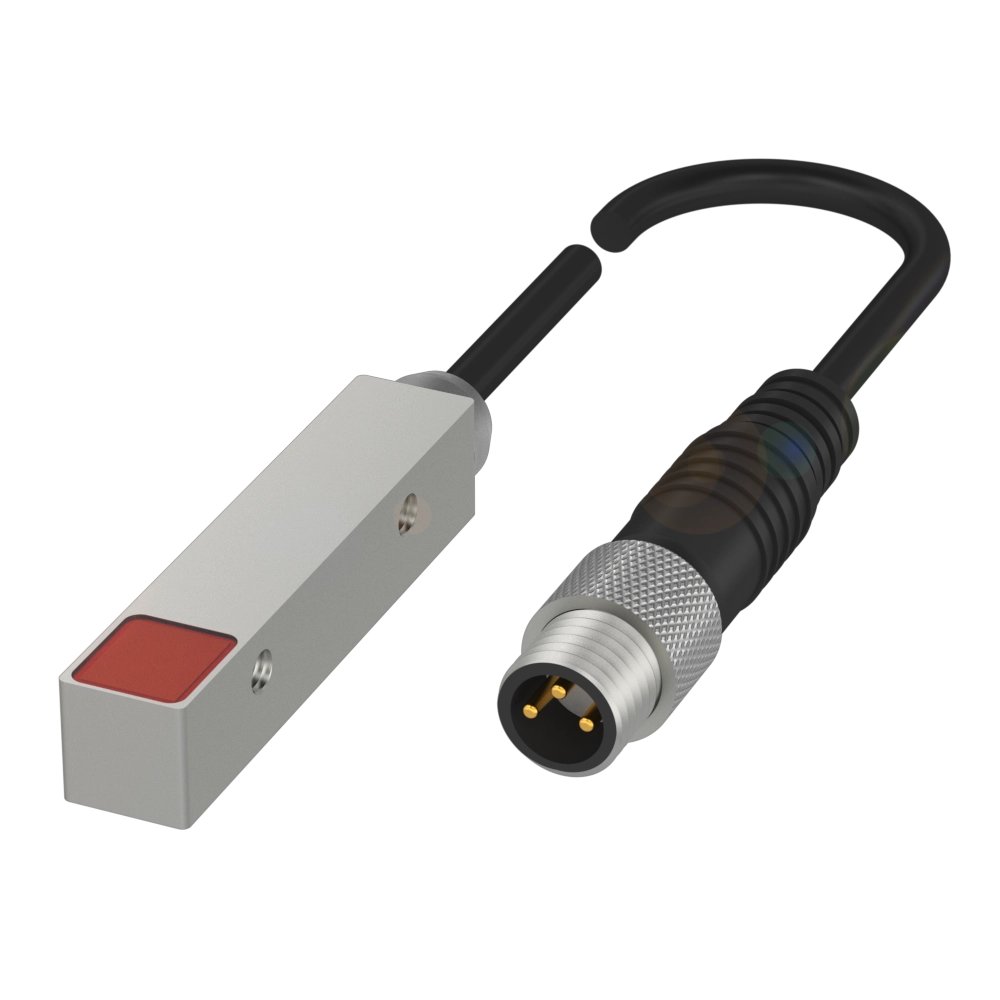

Balluff BOS01MU Retroreflective sensors
Square retro-reflective photocells with different types of light
Balluff BOS01MU Retroreflective sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Series | Q08M |
| Dimension | 8 x 59 x 8 mm |
| Interface | PNP Normally open (NO) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Retroreflective sensor |
| Beam characteristic | Divergent |
| Light type | Laser Red light |
| Light spot size | Ø 3.0 mm Light exit |
| Range | 0...1 m |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.20 m, PUR |
| Housing material | Zinc, Die casting, nickel-plated |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | cULus CE UKCA WEEE |
Downloads
- BOS Q08M-PS-LR20-00,2-S49 (110 KB)
