Balluff

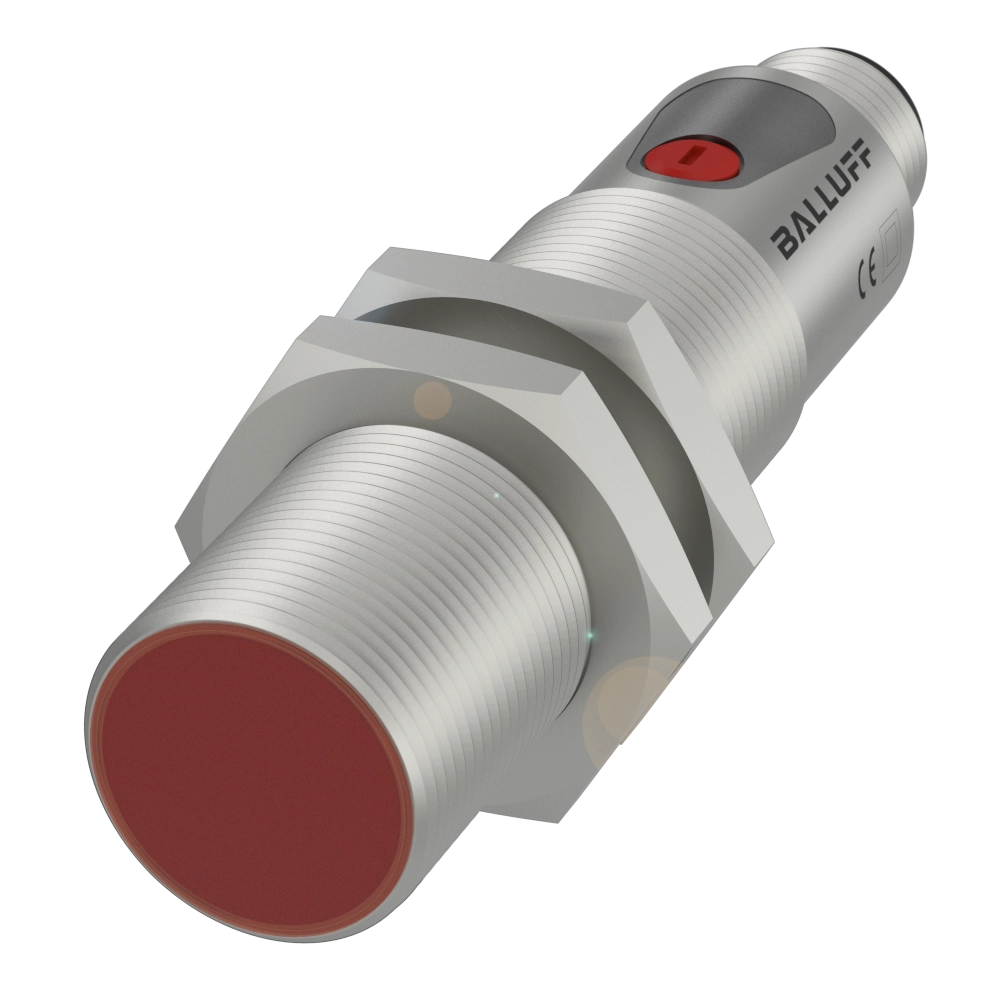

Balluff BOS01CE Retroreflective sensors

Cylindrical retro-reflective photoelectric sensors with M18 thread and different types of light

Balluff BOS01CE Retroreflective sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Specifications

Series	18M
Dimension	Ø 18 x 75 mm
Interface	PNP Normally open (NO)PNP Normally closed (NC)
Principle of operation	Photoelectric sensor
Principle of optical operation	Retroreflective sensor
Beam characteristic	Divergent
Light type	LED Red light
Light spot size	Ø 300 mm at 7 m
Range	0...7 m
Connection	Connector, M12x1-Male, 4-pin
Housing material	Brass, nickel-plated
Material sensing surface	Glass, AR coated
Operating voltage Ub	10...30 VDC
Approval/Conformity	CE UKCA cULus
WEEE
Scope of delivery	2x nut M18x1User manual
