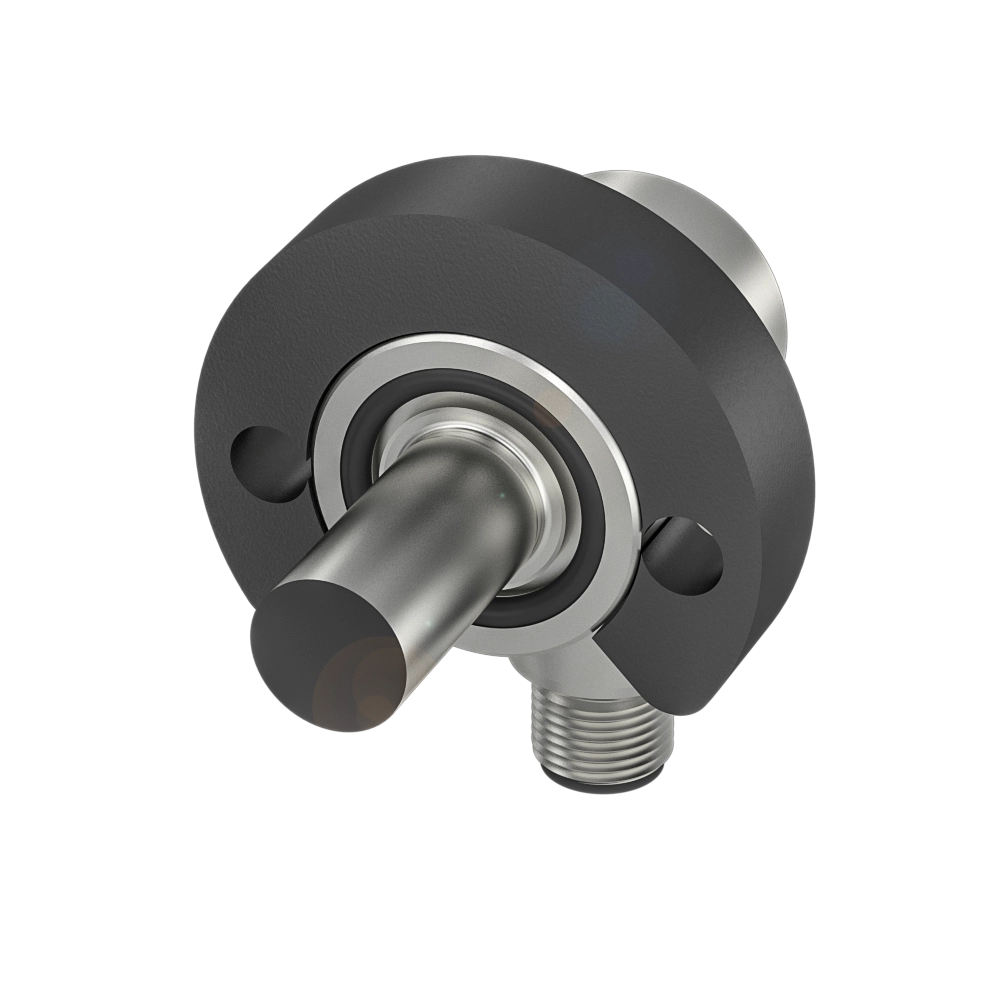

Balluff BES05Z2 Inductive Proximity Sensors
Special version
Balluff BES05Z2 Inductive Proximity Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Dimension | Ø 12.7 mm x 1.25 ″ |
| Style Housing | Ø 12.7 mm |
| Installation | for flush mounting |
| Range | 2 mm |
| Switching output | PNP/NPN Normally open (NO) |
| Switching frequency | 30 Hz |
| Housing material | ZincAluminum |
| Material sensing surface | Duroplast |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| Pressure rating max. | 206 bar |
| IP rating | IP67 |
| Approval/Conformity | CE cULus UKCA WEEE |
Downloads
- BES 516-300-S358 1.250 -S4 (99 KB)
