Balluff

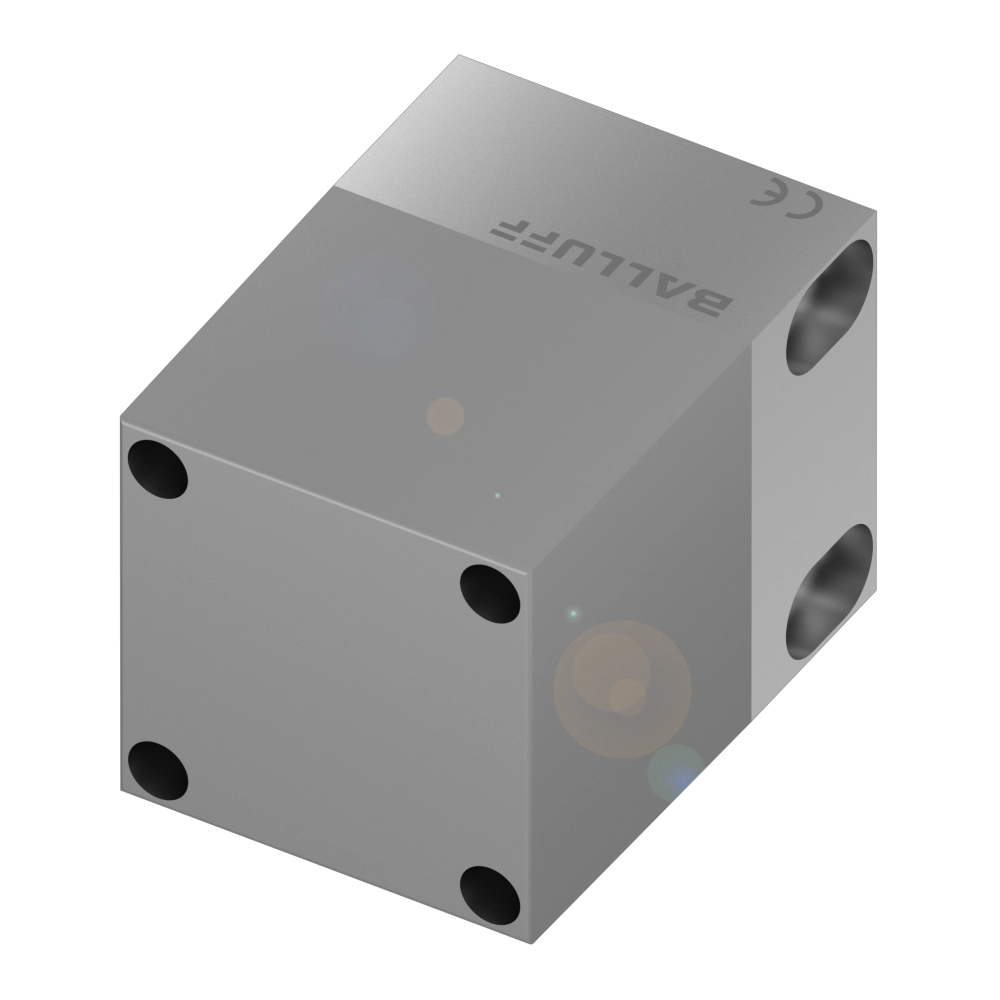

Balluff BES05N9 Inductive Proximity Sensors
Square version with 40 mm height for temperature-resistant applications
Balluff BES05N9 Inductive Proximity Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Dimension | 40 x 40 x 70.7 mm |
| Style Housing | 40x40 |
| Installation | non-flush |
| Range | 25 mm |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 100 Hz |
| Housing material | 1.4305 stainless steelLCP |
| Material sensing surface | LCP |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...35 VDC |
| Ambient temperature | 0...150 °C |
| IP rating | IP67 |
| Approval/Conformity | CE WEEE UKCA |
Downloads
- BES Q40KG-PSD25F-S04G (85 KB)
