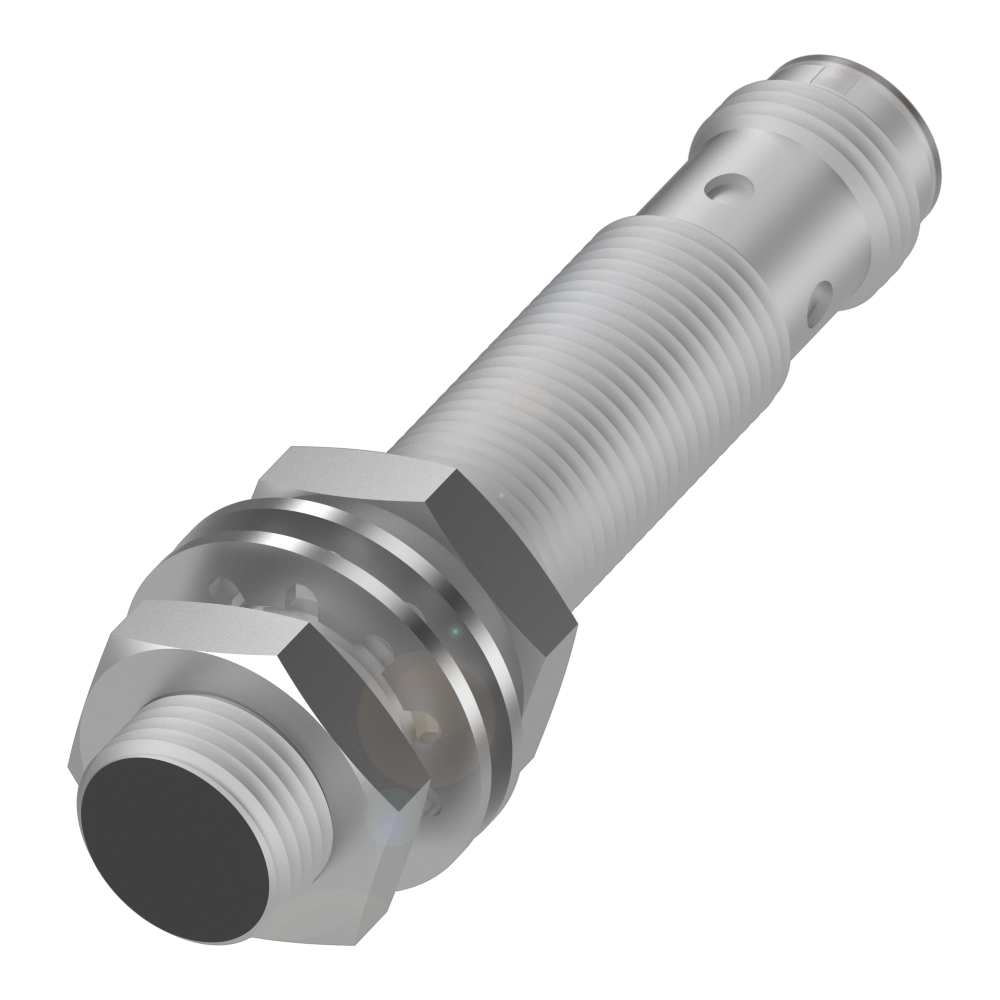

Balluff BES05KT Inductive Proximity Sensors
Cylindrical version for magnetic-field-resistant applications
Balluff BES05KT Inductive Proximity Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Dimension | Ø 12 x 65 mm |
| Style Housing | M12x1 |
| Installation | for flush mounting |
| Range | 4 mm |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 2000 Hz |
| Housing material | Brass, PTFE coated |
| Material sensing surface | PBT |
| Connection | Connector, M12x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -40...85 °C |
| Magnetic field immune | magnetic field immune (AC/DC) |
| IP rating | IP68 |
| Approval/Conformity | CE UKCA WEEE |
| cULus | |
| Additional features | Factor 1Extended temperature rangeHousing resistant to weld spatterWeld-immune (magnetic field 100kA/m) |
Downloads
- BES M12MI-PSC40A-S04G-W08 (256 KB)
