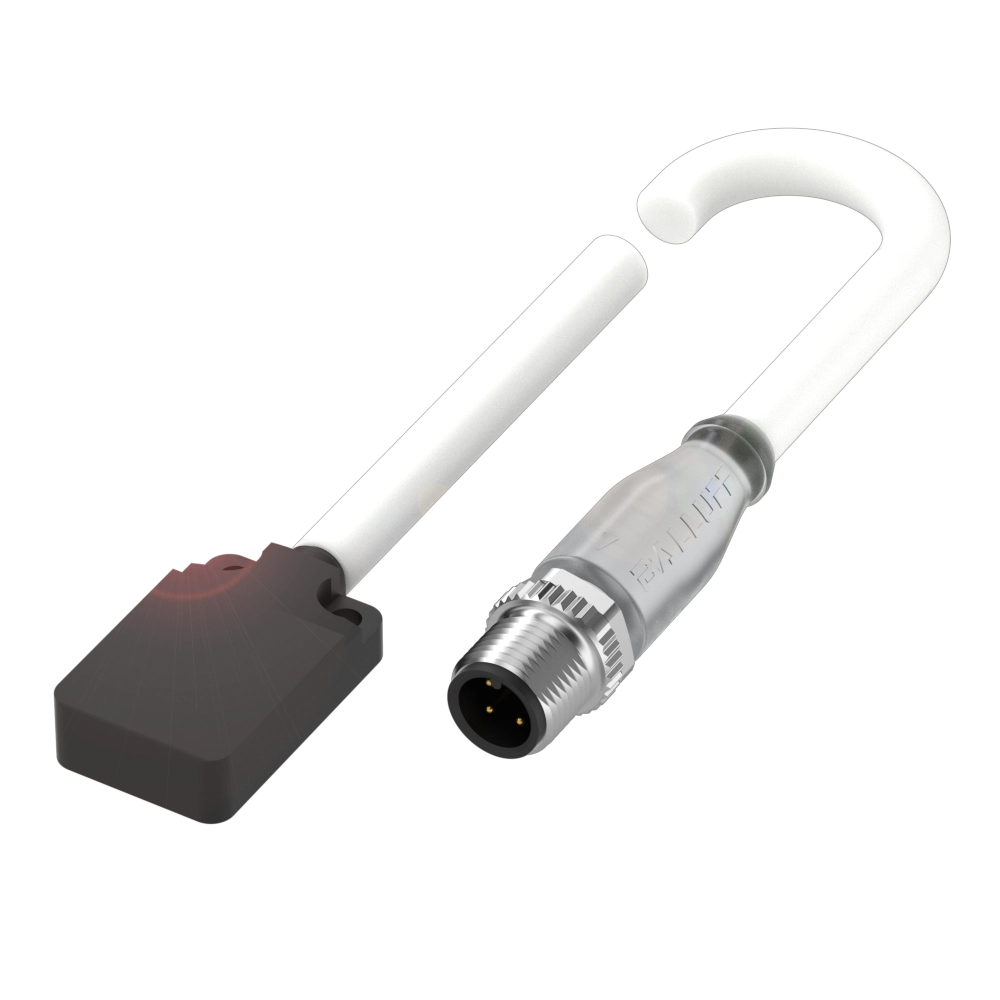

Balluff BES049Y Inductive Proximity Sensors
Cubic version for magnetic-field-resistant applications
Balluff BES049Y Inductive Proximity Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Dimension | 32 x 20 x 8 mm |
| Style Housing | 32x20x8 |
| Installation | for flush mounting |
| Range | 5 mm |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 20 Hz |
| Housing material | Stainless steel, PTFE coated |
| Material sensing surface | Stainless steel, W51 ceramic coating |
| Connection | Cable with connector, M12x1-Male, 4-pin, 0.30 m, PUR |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| Magnetic field immune | magnetic field immune (AC/DC) |
| IP rating | IP67 |
| Approval/Conformity | CE UKCA cULus |
| WEEE | |
| Additional features | Factor 1Housing resistant to weld spatterWeld immune |
Downloads
- BES R01EC-PSC50A-BP00,3-GS04-W51 (105 KB)
