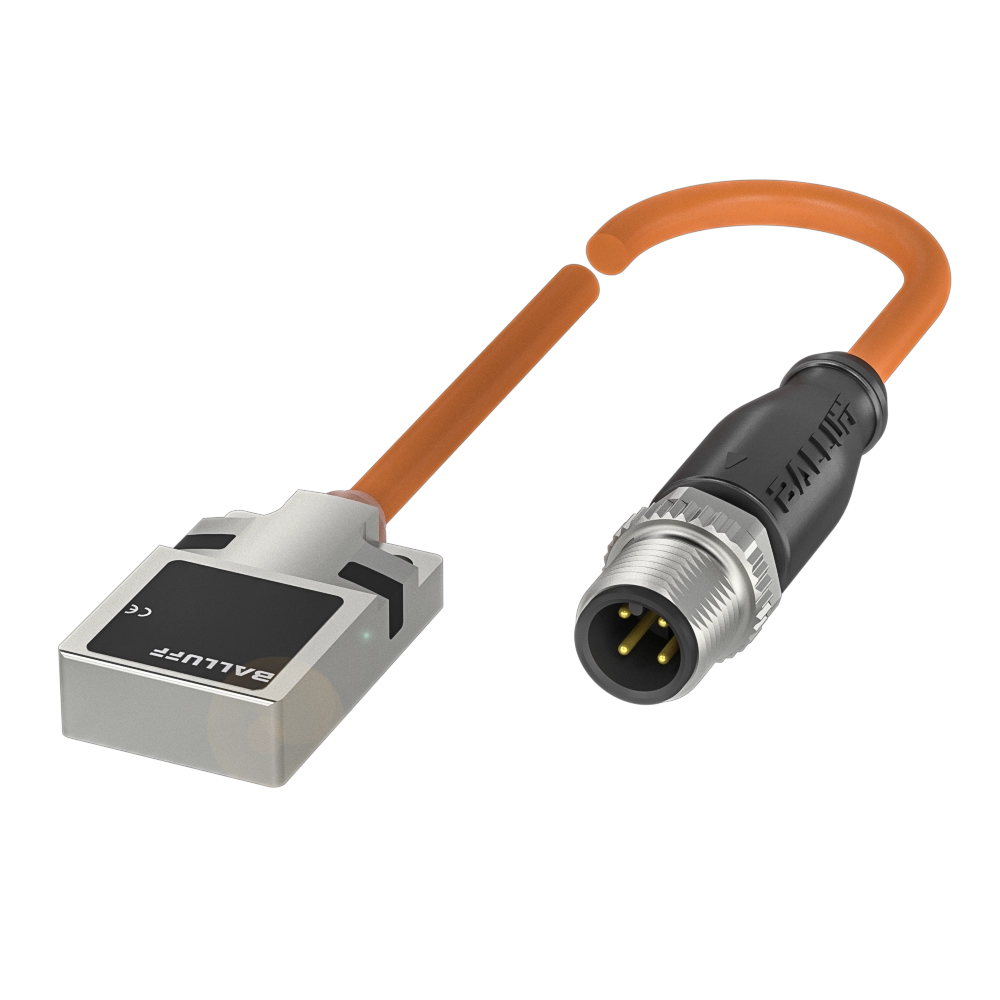

Balluff BES048Y Inductive Proximity Sensors

Cubic version for magnetic-field-resistant applications

Balluff BES048Y Inductive Proximity Sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Specifications

Dimension	32 x 20 x 8 mm
Style Housing	32x20x8
Installation	for flush mounting
Range	7 mm
Switching output	PNP Normally open (NO)
Switching frequency	150 Hz
Housing material	Zinc, Die casting, partly coated
Material sensing surface	ceramic coated
Connection	Cable with connector, M12x1-Male, 3-pin, 0.20 m, TPU
Operating voltage Ub	10...30 VDC
Ambient temperature	-25...70 °C
IP rating	IP67
Approval/Conformity	CE UKCA cULus
WEEE
Additional features	Housing resistant to weld spatter
