Balluff

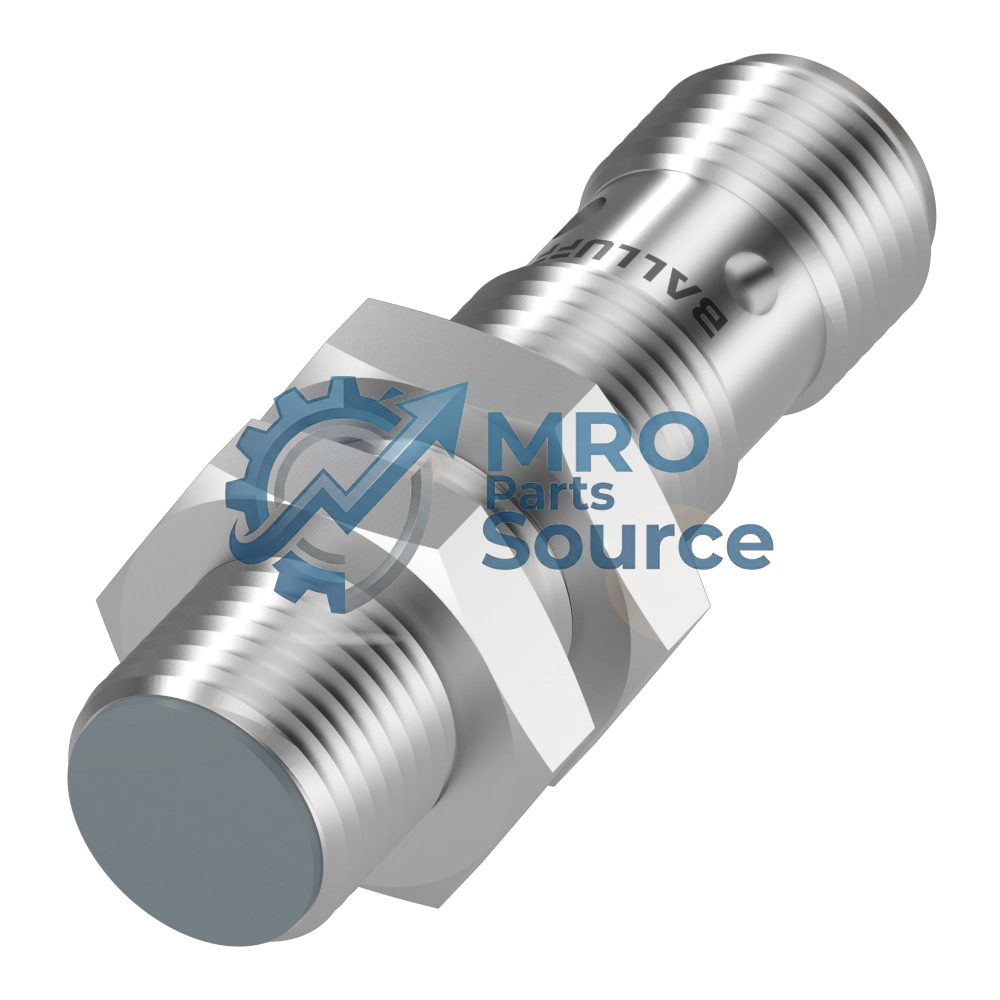

Balluff BES0433 Inductive Proximity Sensors
Cylindrical version for hygienic applications
Balluff BES0433 Inductive Proximity Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Dimension | Ø 12 x 45 mm |
| Style Housing | M12x1 |
| Installation | for flush mounting |
| Range | 4 mm |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 2000 Hz |
| Housing material | 1.4404 stainless steel |
| Material sensing surface | LCP |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...85 °C |
| IP rating | IP68 |
| Approval/Conformity | CE UKCA cULus WEEE |
Downloads
- BES M12EE-PSC40B-S04G-L01 (97 KB)
