Balluff

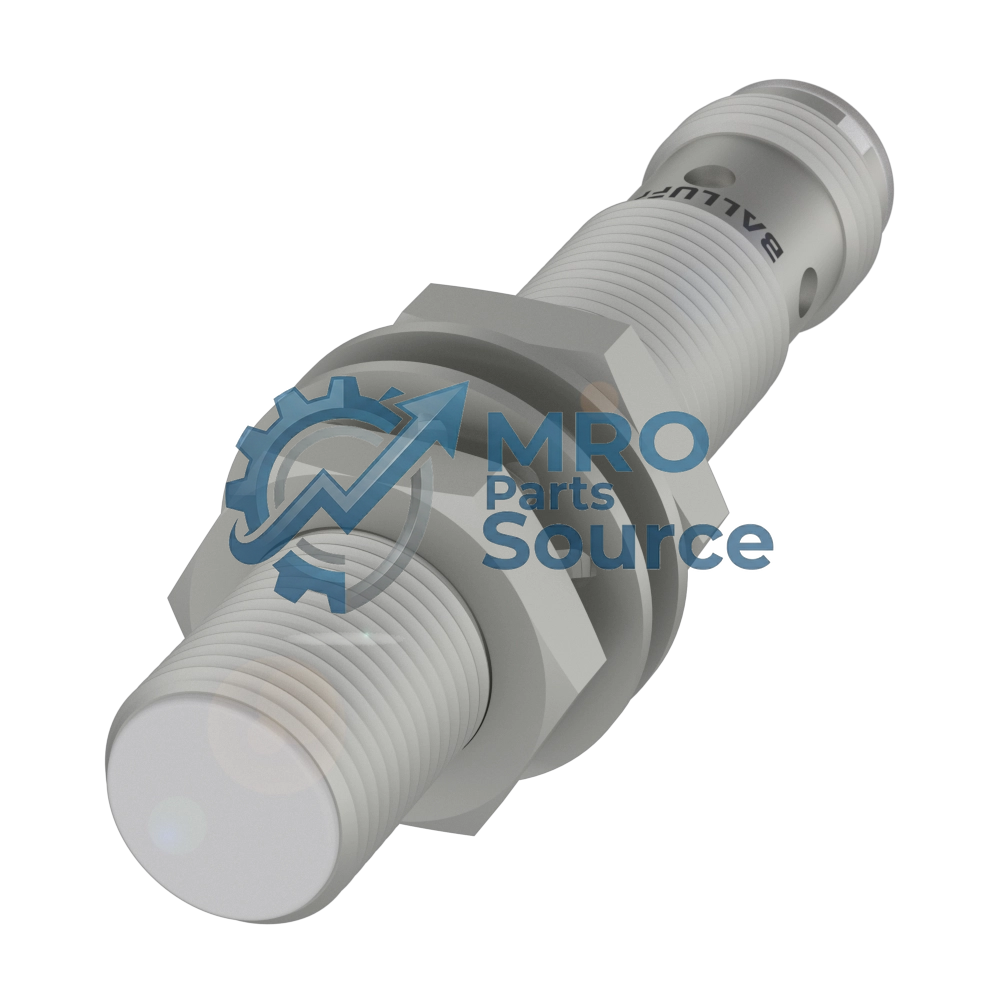

Balluff BES02NC Inductive Proximity Sensors
Cylindrical version for high-pressure-resistant applications
Balluff BES02NC Inductive Proximity Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Dimension | Ø 12 x 65 mm |
| Style Housing | M12x1 |
| Installation | for flush mounting |
| Range | 4 mm |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 500 Hz |
| Housing material | Stainless steel, PTFE coated |
| Material sensing surface | Stainless steel |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| Pressure rating max. | 60 bar |
| IP rating | IP67 |
| Approval/Conformity | CE UKCA cULus WEEE |
Downloads
- BES M12EI-PSC40B-S04G-S01 (98 KB)
