Balluff

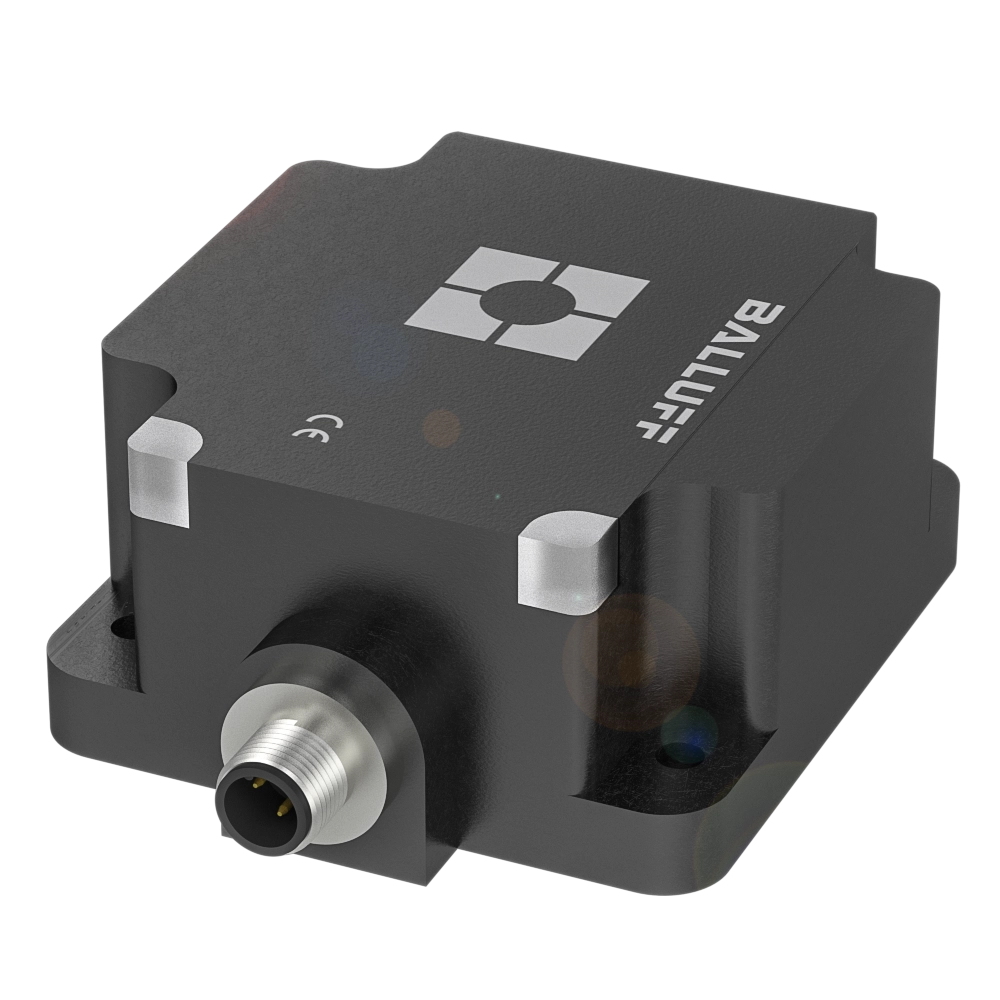

Balluff BES0226 Inductive Proximity Sensors
Square version with 80 mm height
Balluff BES0226 Inductive Proximity Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Dimension | 106 x 80 x 40 mm |
| Style Housing | 80x80 |
| Installation | non-flush |
| Range | 50 mm |
| Switching output | PNP NO/NC |
| Switching frequency | 50 Hz |
| Housing material | PBT, GF30 |
| Material sensing surface | PBT, GF30 |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...55 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CE UKCA cULus WEEE |
Downloads
- BES Q80KA-PAH50F-S04Q (96 KB)
