Balluff

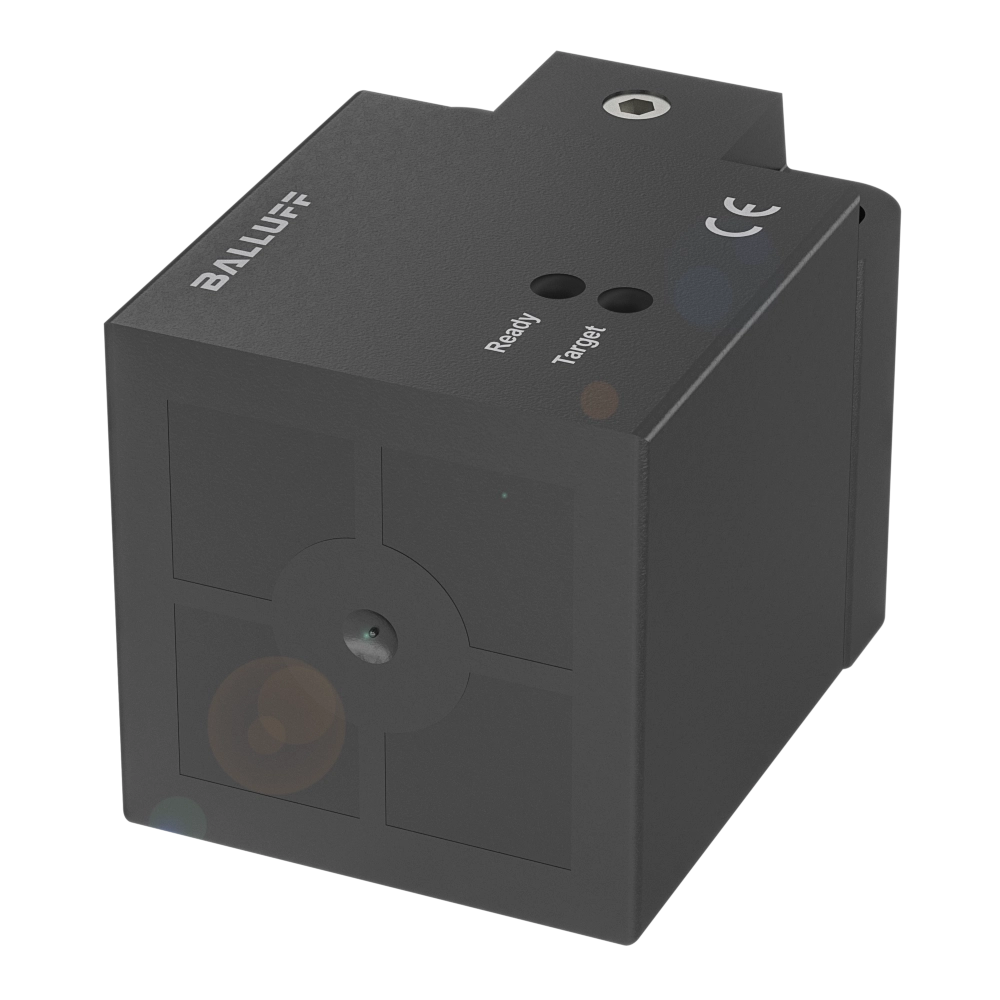

Balluff BES021H Inductive Proximity Sensors
Square version with 40 mm height for magnetic-field-resistant applications
Balluff BES021H Inductive Proximity Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Dimension | 40 x 40 x 62 mm |
| Style Housing | 40x40 |
| Installation | non-flush |
| Range | 35 mm |
| Switching output | PNP NO/NC |
| Switching frequency | 250 Hz |
| Housing material | PBT |
| Material sensing surface | PBT |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -10...70 °C |
| Magnetic field immune | magnetic field immune (AC/DC) |
| IP rating | IP67 |
| Approval/Conformity | CE UKCA cULus |
| WEEE | |
| Additional features | Factor 1 |
Downloads
- BES Q40KFU-PAC35E-S04G (101 KB)
