Balluff

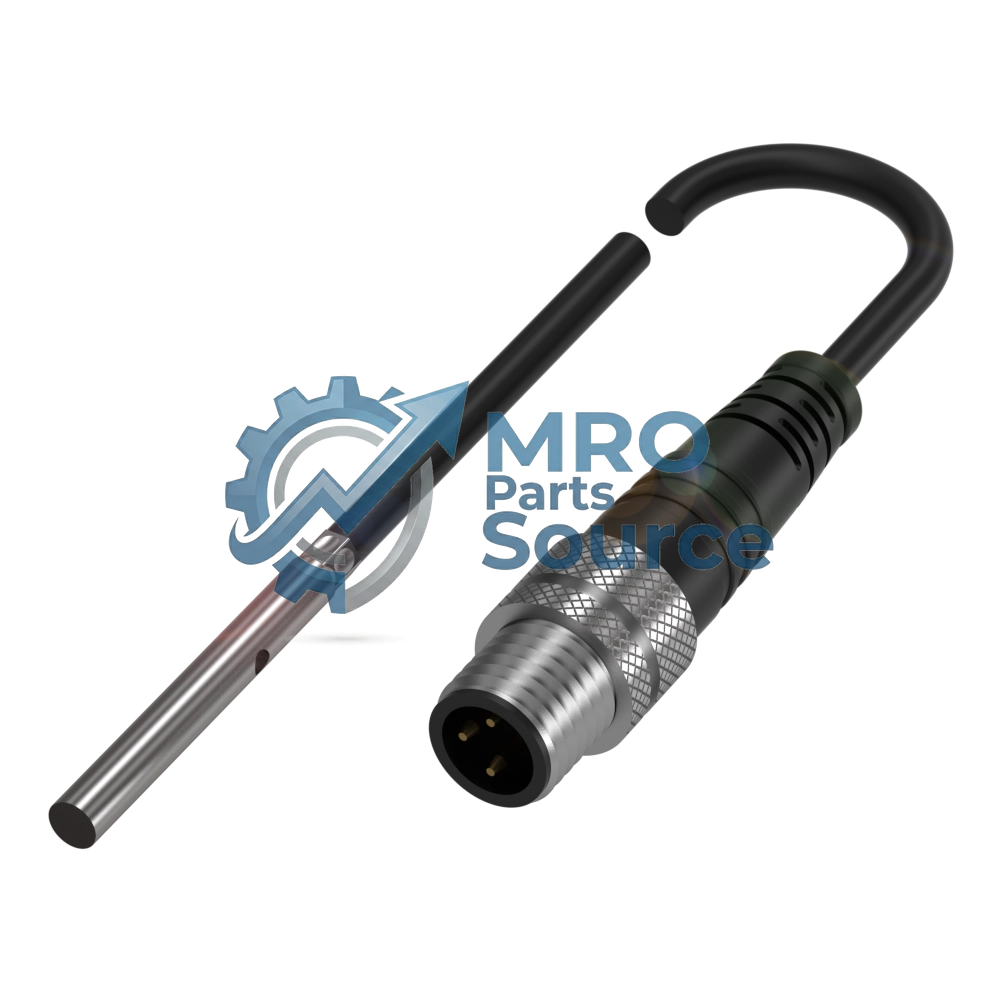

Balluff BES00M5 Inductive Proximity Sensors
Cylindrical version without thread
Balluff BES00M5 Inductive Proximity Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Dimension | Ø 3 x 27 mm |
| Style Housing | D3.0 |
| Installation | for flush mounting |
| Range | 1 mm |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 3500 Hz |
| Housing material | Stainless steel |
| Material sensing surface | PBT |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | cULus CE UKCA WEEE |
Downloads
- BES 516-3044-G-E4-C-S49-00,3 (97 KB)
