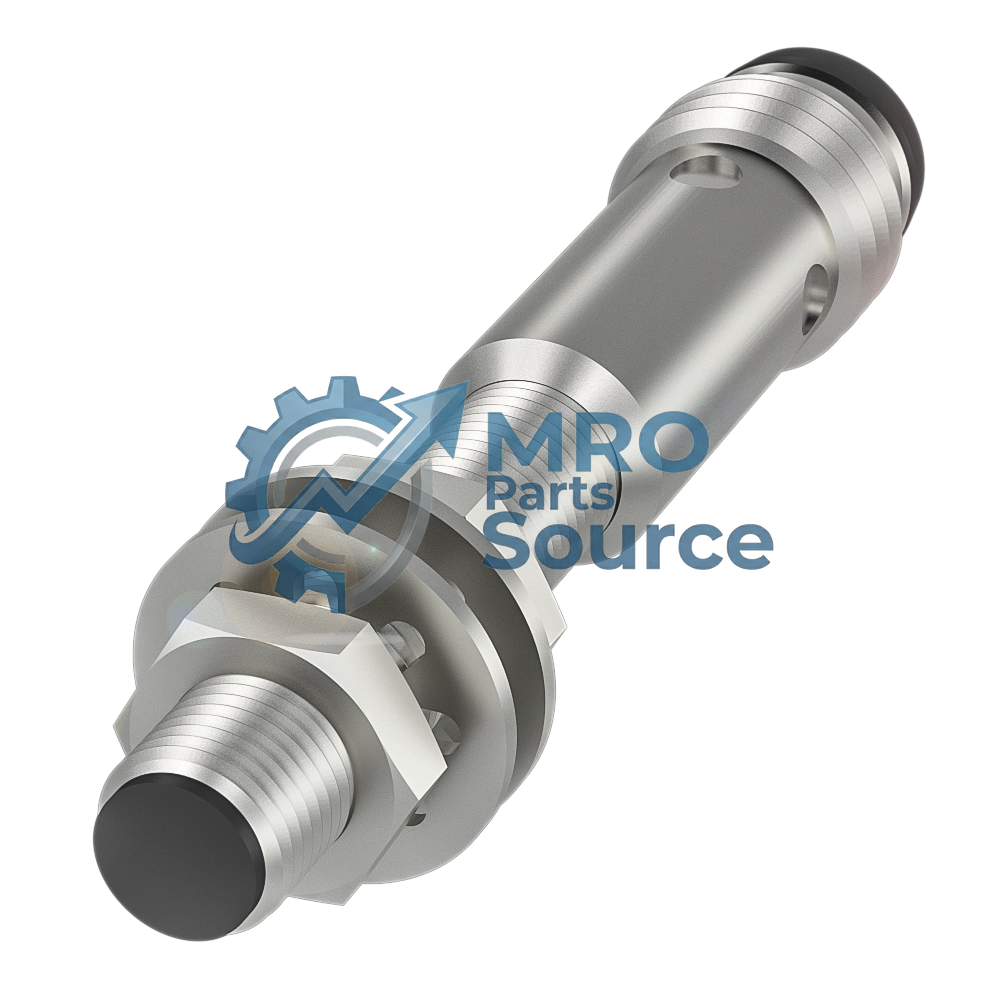

Balluff BES00HF Inductive Proximity Sensors
Cylindrical miniature version
Balluff BES00HF Inductive Proximity Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Dimension | Ø 5 x 41 mm |
| Style Housing | M5x0.5 |
| Installation | for flush mounting |
| Range | 1.5 mm |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 5000 Hz |
| Housing material | Stainless steel |
| Material sensing surface | PBT |
| Connection | Connector, M8x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | cULus CE UKCA WEEE |
Downloads
- BES 516-3005-G-E5-C-S49 (142 KB)
