Balluff

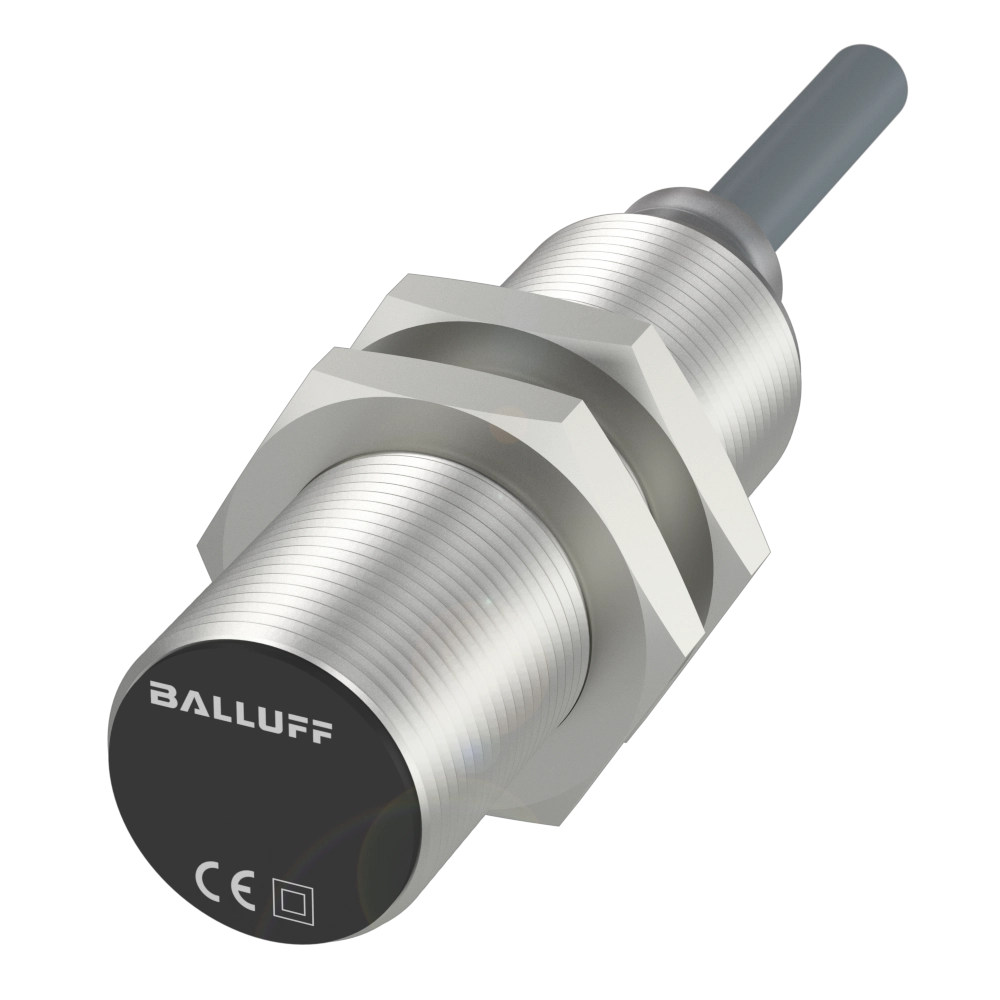

Balluff BES008E Inductive Proximity Sensors
Inductive proximity switches and proximity sensors
Balluff BES008E Inductive Proximity Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Specifications
| Dimension | Ø 18 x 55 mm |
| Style Housing | M18x1 |
| Installation | for flush mounting |
| Range | 8 mm |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 1300 Hz |
| Housing material | Brass, Nickel-free coated |
| Material sensing surface | PBT |
| Connection | Cable, 2.00 m, PVC |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -40...85 °C |
| IP rating | IP68 |
| Approval/Conformity | CE UKCA cULus WEEE |
Downloads
- BES M18MI-PSC80B-BV02 (94 KB)
